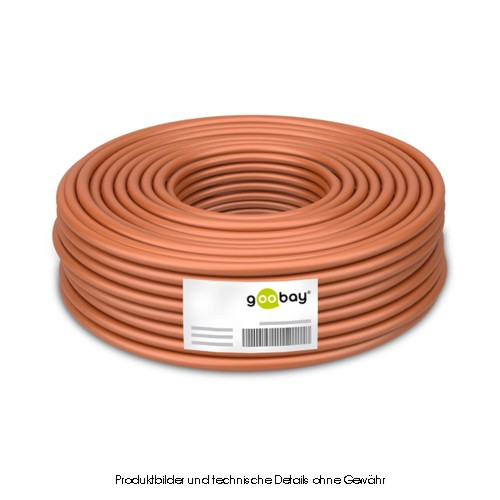

RJ 45 CAT7 Kabel 100m Ring Starr
- Artikel-Nr.: 2005929
Anwendungsgebiete: bis zu Class F(A) 1000 MHz Power over Ethernet (PoE/PoE+) analoge/digitale Signale, Video, Voice over IP(VoIP) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T Int. Standard ISO/IEC 11801 2nd ed., IEC 61156-5 Euro. Standard: EN 50173-1 EN 50288-9-1 FRNC/LSZH = Flame Reterdant Non Corrosive / Low Smoke Zero Halogen
- unkonfektioniertes Daten-/Verlege-/Installationskabel zur Verarbeitung und Installation mit LSA Anschlusstechnik in Innenräumen
- doppelt geschirmtes Twisted-Pair LAN Kabel
- Aderpaarschirmung: PIMF (Paare in Metall Folie) + Gesamtschirmung: Geflecht
- Power over Ethernet (PoE/PoE+)
Brandklasse (CPR) nach DIN EN 13501-6Dca
Kabel
Kabeltyp: Rundkabel
Spezifikation: CAT 7a
Schirmungsklasse: S/FTP (PiMF)
AWG: 23/1 (solid)
Durchmesser Kabelmantel: (ca.)7,5 mm
Innenleiter, Material: CU (Kupfer)
Kabellänge: 100 m
Kabelmantel, Material: LSZH
Anzahl Schirmungen: 2 x
Typ 1, Schirmung: Folie (Alu) PiMF
Typ 2, Schirmung: Geflecht (Kupfer)
LSZH-konform: ja
Signalübertragung
max. Bandbreite: 1000 MHz
Irrtümer vorbehalten
